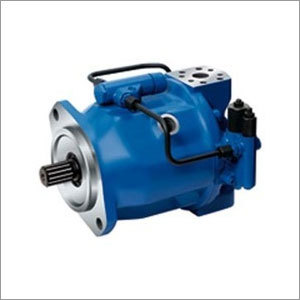

A10VSO Axial Piston Variable Pumps

A10VSO Axial Piston Variable Pumps
A10VSO Axial Piston Variable Pumps
Product Code : 16
Product Description

A10VSO Axial Piston Variable Pumps

Item Code: BoschRexrothA10VO

Features:
  • Variable axial piston pump of swash plate design for hydrostatic drives in open circuit.
  • The flow is proportional to the drive speed and is placement.
  • The flow can be infinity varied by adjusting the wash plate angle.
  • Hydrostatic unloading of the cradle bearings
  • Connection for measuring sensor on the high-pressure port
  • Low noise level
  • Low pressure pulsation
  • High efficiency
  • High resistance against cavitation, loss of suction pressure and case pressure peaks
  • Universal through drive

Technical Data:

Size

45

71

100

140

180




Nominal pressure

pN

bar

280

280

280

280

280


Maximum pressure

pmax

bar

350

350

350

350

350


Displacement

Vg max

cm³

45

71

100

140

180


Speed1)

nmax

rpm

1800

1800

1800

1800

1800


Flow

atnmax

qV max

l/min

81

128

180

252

324

Power

Δp= 280 bar

Pmax

kW

38

59.7

84

118

151

Torque

Δp= 280 bar

Tmax

Nm

200

317

446

624

802

Weight (approx.)

m

kg

30

47

69

73

78



Model Numbers:
  • A10VO
  • A10VSO
